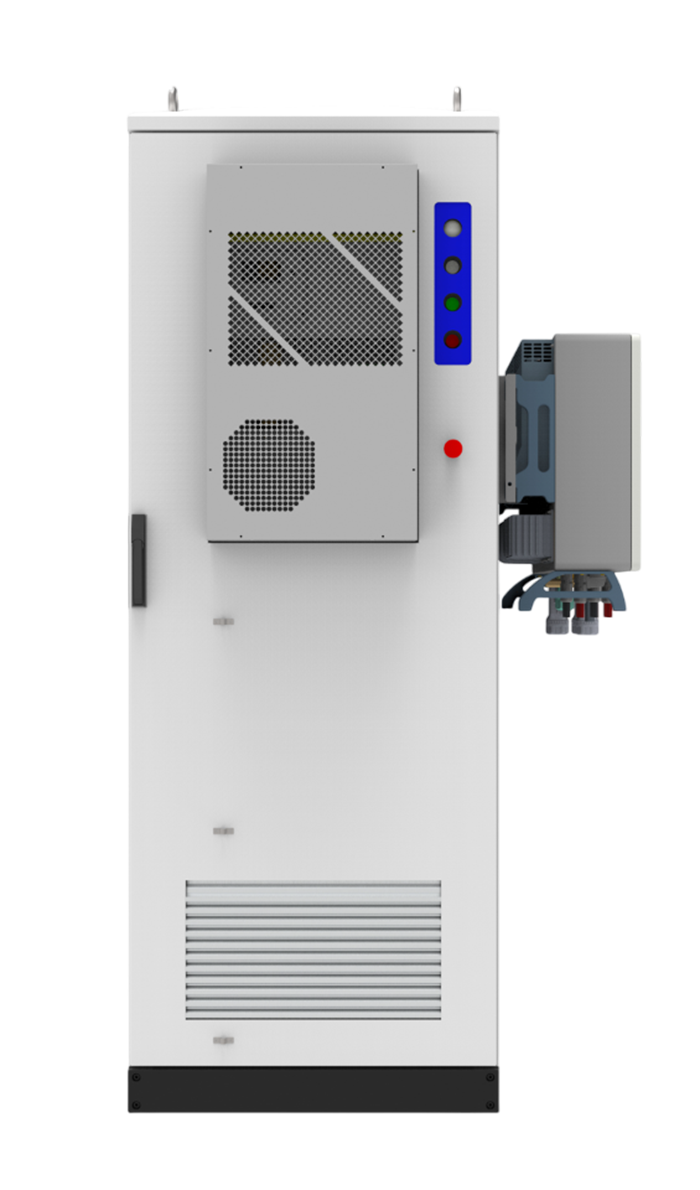

Air-cooled Hybrid Cabinet
ECO-E64WX
The ECO-E64WX is a compact PV-plus ESS solution, designed on
ESS integration and digital monitoring technologies. The cabinet integrates components such as lithium battery, HVAC, fire suppression system (FSS), and EMS. With compact structure, it enables easy installation and flexible capacity expansion. Paired with hybrid inverter, the ESS supports multiple work modes and various operation strategies.
64.512 kWh / 1P168S
System Configuration
537.6
V
Rated DC Voltage
470.4 ~ 604.8
V
DC Voltage Range
100
% (25 ± 2 ℃)
Max. Depth of Discharge
≥ 5,500
Cycle Life
IP55
Ingress Rating
Product Features
Economical & Efficient
RTE up to 87%, DOD up to 100%.
Safe & Reliable
IP55, optimized ventilation design, temperature difference within 6°C.
Compact & Convenient
0.96㎡ footprint,
easy to transport and install.
Expandable & Modular
Modular design supports parallel connection for convenient system expansion.
Versatile
Support multiple brands of hybrid inverter, with higher selectivity.
PV pluggable
Support PV connection, with higher integration.
Self-developed
PACK and EMS are all independently developed with good compatibility.
Easy O & M
Support multiple ways of operation and maintenance,including onsite, cloud.
Specification
| DC Side | |
| Cell Type | LFP 120 Ah |
| Pack Configuration | 9.216 kWh / 1P24S |
| System Configuration | 64.512 kWh / 1P168S |
| Rated DC Voltage | 537.6 V |
| DC Voltage Range |
470.4 ~ 604.8 V |
| Max. Charge/Discharge Rate | 0.8 P |
| Max. Depth of Discharge | 100% （25 ± 2 ℃） |
| PV Input | |
| Max. input power |
37.5kW
45kW
54kW
60kW
75kW
|
| PV Voltage Range | 200V~850V |
| MPPT | 4 |
| MAX. Input Current | 30A*4 |
| AC Side | |
| Rated Output Power |
25kW
30kW
36kW
40kW
50kW
|
| Rated AC Voltage | 400V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99/ -1 ~ +1 |
| THDi | ≤ 3% |
| DC Ratio | ＜0.5% Ipn |
| General | |
| Max. Round Trip Efficiency | 87% |
| Cycle Life | ≥ 5,500 cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Noise | ≤ 75 dB |
| Altitude | 3000m (Derating above 2000m) |
| Dimensions (W*D*H) | 800*1,200*2,030 mm |
| Weight | 1,000 kg |
| Safety/EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
| Grid code | EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11 |
